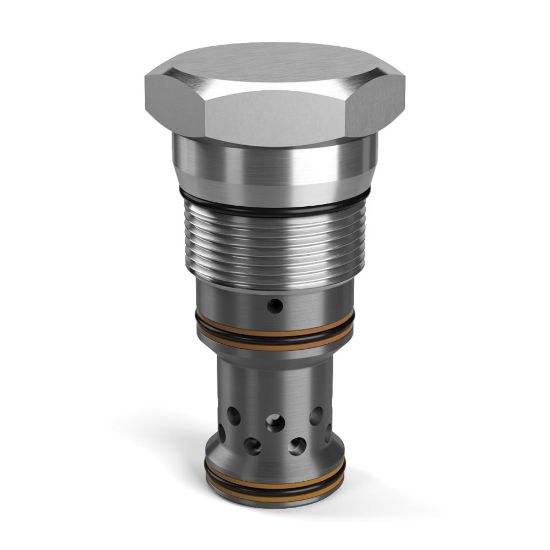

R08E3-20.0N - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU R08E3-20.0N

$444.86/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Switching Pressure	290 PSI, 20 BAR	Maximum Flow Rate	132 GAL/MIN, 500 L/MIN
Flow Direction	Nose to Side (1-2)	Dampening Orifice Included	No
Configuration	Normally Closed	Division	Hydraulic Valve Systems Division
Division	Mobile Hydraulic Systems Division Europe	Operating Temperature	-30 to +250
Flow Rate	90 @ 100 PSI (7 BAR) Nominal	Actuation Type	Pilot to Close
Maximum Flow Rate	132	Maximum Operating Pressure	6000
Maximum Operating Temperature	+250	Minimum Operating Temperature	-30
Body Material	N/A	Seal Material	Nitrile
Flow Direction	Nose to Side (1-2)	Weight	1.52
Operation Type	Pilot Operated	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Normally Closed	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Function	Logic Valve	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Vented	Internal	Leak Rate	90 @ 1450 PSI (BAR)
Cavity Size	C20-3S	Pilot Location	External
Valve Material	All parts steel. All operating parts hardened steel	Switching Pressure	290
Installation Torque	110	Maximum Inlet Pressure Rating	6000
Dampening Orifice Included	No
