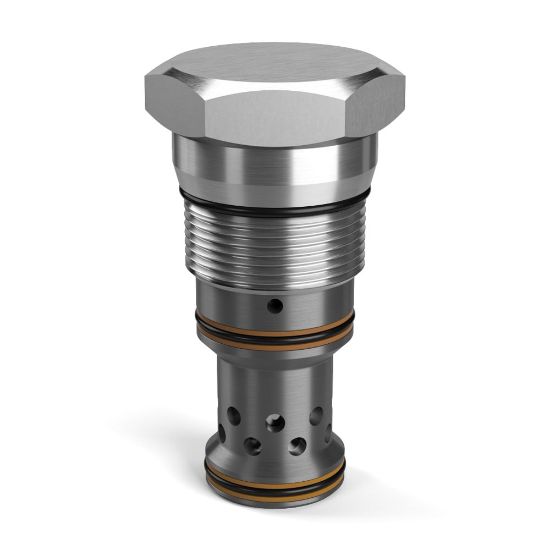

R08F3-10.0N - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 290 days
Partner Available:	Backordered

SKU R08F3-10.0N

$375.53/each

Products specifications

Attribute name	Attribute value
UOM	EA	Switching Pressure	145 PSI, 10 BAR
Maximum Flow Rate	132 GAL/MIN, 500 L/MIN	Dampening Orifice Included	Yes
Flow Direction	Nose to Side (1-2)	Seal Material	Nitrile
Configuration	Normally Closed	Division	Hydraulic Cartridge Systems Division
Division	Mobile Hydraulic Systems Division Europe	Operating Temperature	-34 to +121 °C
Flow Rate	340 @ 100 PSI (7 BAR) Nominal L/min	Actuation Type	Vent to Open
Maximum Flow Rate	132 Gal/min	Maximum Operating Pressure	6000 psi
Maximum Operating Temperature	+250 °F	Minimum Operating Temperature	-30 °F
Body Material	N/A	Seal Material	Nitrile
Flow Direction	Nose to Side (1-2)	Weight	0.69 kg
Operation Type	Pilot Operated	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Normally Closed	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Function	Logic Valve	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Vented	Internal	Leak Rate	90 @ 1450 PSI (BAR) cm3/min
Cavity Size	C20-3S	Pilot Location	Internal
Valve Material	All parts steel. All operating parts hardened steel	Switching Pressure	145 psi
Installation Torque	150 Nm	Maximum Inlet Pressure Rating	6000 psi
Dampening Orifice Included	Yes
