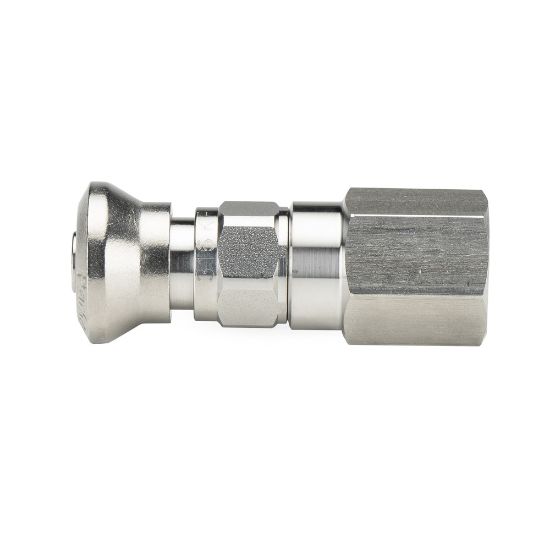

2F-Q4CY-SSP - Stainless Steel, Instrumentation Quick Couplings - CPI Series

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU 2F-Q4CY-SSP

$158.24/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/4
Connection Thread Size (inch)	1/8 - 27	Coupling Half	Female Coupler
Connection Type	Female NPT	Tube Size (inch)	na
Maximum Operating Pressure	3000	Minimum Operating Temperature	-15 °F
Application	Instrumentation	Seal Material	Fluorocarbon
Product Type	Push-to-Connect	Hose Inside Diameter	na
Maximum Operating Temperature	400 °F	Valve Type	Poppet
Division	Quick Coupling Division	Body Material	316 Stainless steel
Maximum Operating Pressure	3000 psi	Vacuum Pressure Rating	0.05 mm-Hg
