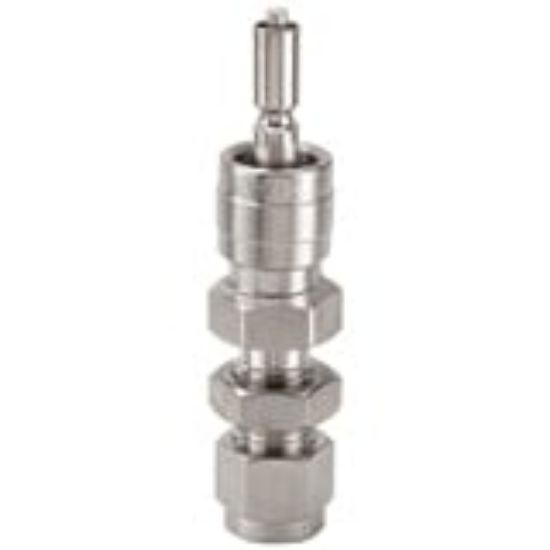

4AH-Q4P-SS - Stainless Steel, Instrumentation Quick Couplings - CPI Series

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU 4AH-Q4P-SS

$109.93/each

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Body Size (inch)	1/4	Connection Thread Size (inch)	na
Maximum Operating Pressure	3000	Connection Type	A-Lok bulkhead tube end
Tube Size (inch)	1/4	Valve Type	Unvalved
Division	Quick Coupling Division	Seal Material	na
Maximum Operating Temperature	400 °F	Hose Inside Diameter	na
Product Type	Push-to-Connect	Minimum Operating Temperature	-15 °F
Application	Instrumentation	Maximum Operating Pressure	3000 psi
Body Material	316 Stainless steel	Vacuum Pressure Rating	0.05 mm-Hg
