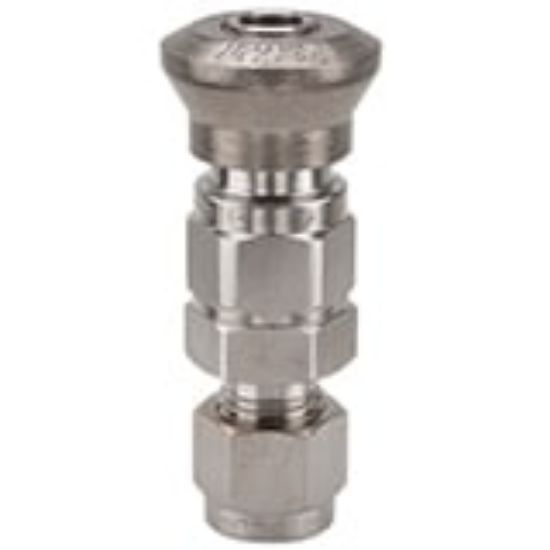

8A-Q8CY-SSP - Stainless Steel, Instrumentation Quick Couplings - CPI Series

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU 8A-Q8CY-SSP

$194.56/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	na
Tube Size (inch)	1/2	Connection Type	A-Lok tube end
Maximum Operating Pressure	750	Body Size (inch)	1/2
Coupling Half	Female Coupler	Seal Material	Fluorocarbon
Maximum Operating Temperature	400 °F	Division	Quick Coupling Division
Valve Type	Poppet	Hose Inside Diameter	na
Product Type	Push-to-Connect	Application	Instrumentation
Minimum Operating Temperature	-15 °F	Maximum Operating Pressure	750 psi
Vacuum Pressure Rating	0.05 mm-Hg	Body Material	316 Stainless steel
