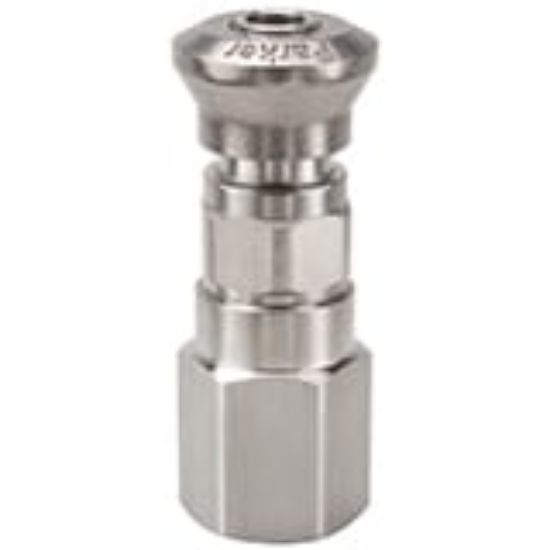

8F-Q8CY-SSP - Stainless Steel, Instrumentation Quick Couplings - CPI Series

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU 8F-Q8CY-SSP

$224.36/each

Products specifications

Attribute name	Attribute value
UOM	EA	Tube Size (inch)	na
Maximum Operating Pressure	750	Body Size (inch)	1/2
Coupling Half	Female Coupler	Connection Thread Size (inch)	1/2 - 14
Connection Type	Female NPT	Valve Type	Poppet
Division	Quick Coupling Division	Hose Inside Diameter	na
Product Type	Push-to-Connect	Maximum Operating Temperature	400 °F
Seal Material	Fluorocarbon	Application	Instrumentation
Minimum Operating Temperature	-15 °F	Body Material	316 Stainless steel
Vacuum Pressure Rating	0.05 mm-Hg	Maximum Operating Pressure	750 psi

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
