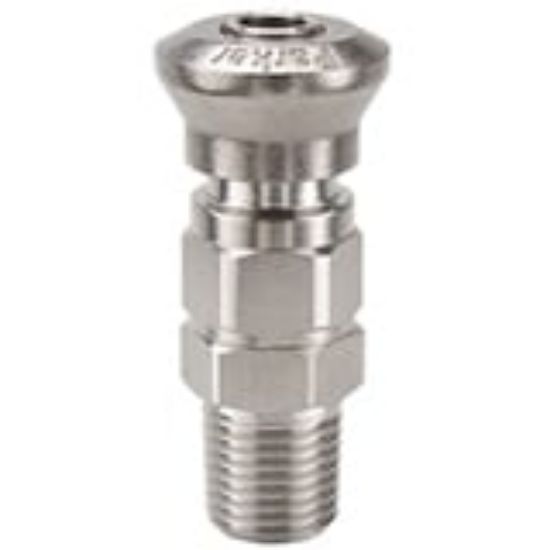

8M-Q8CY-SSP - Stainless Steel, Instrumentation Quick Couplings - CPI Series

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU 8M-Q8CY-SSP

$589.64/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	750
Tube Size (inch)	na	Body Size (inch)	1/2
Coupling Half	Female Coupler	Connection Thread Size (inch)	1/2 - 14
Connection Type	Male NPT	Product Type	Push-to-Connect
Hose Inside Diameter	na	Maximum Operating Temperature	400 °F
Seal Material	Fluorocarbon	Application	Instrumentation
Minimum Operating Temperature	-15 °F	Maximum Operating Pressure	750 psi
Body Material	316 Stainless steel	Vacuum Pressure Rating	0.05 mm-Hg
Valve Type	Poppet	Division	Quick Coupling Division
