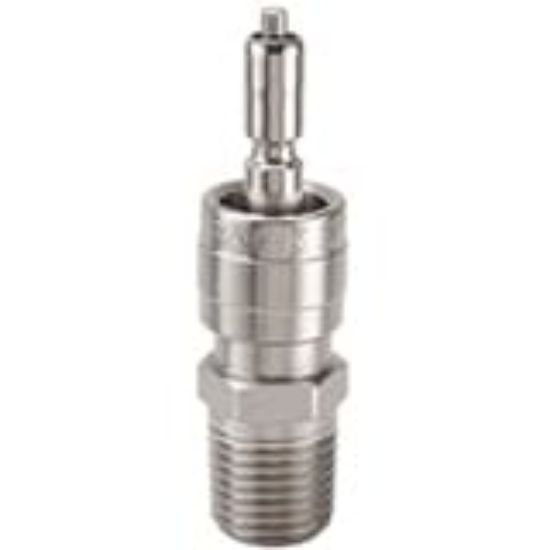

8M-Q8P-SS - Stainless Steel, Instrumentation Quick Couplings - CPI Series

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU 8M-Q8P-SS

$112.73/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	750
Tube Size (inch)	na	Coupling Half	Male Nipple
Connection Thread Size (inch)	1/2 - 14	Connection Type	Male NPT
Body Size (inch)	1/2	Application	Instrumentation
Maximum Operating Pressure	750 psi	Vacuum Pressure Rating	0.05 mm-Hg
Body Material	316 Stainless steel	Seal Material	na
Division	Quick Coupling Division	Valve Type	Unvalved
Maximum Operating Temperature	400 °F	Minimum Operating Temperature	-15 °F
Hose Inside Diameter	na	Product Type	Push-to-Connect
