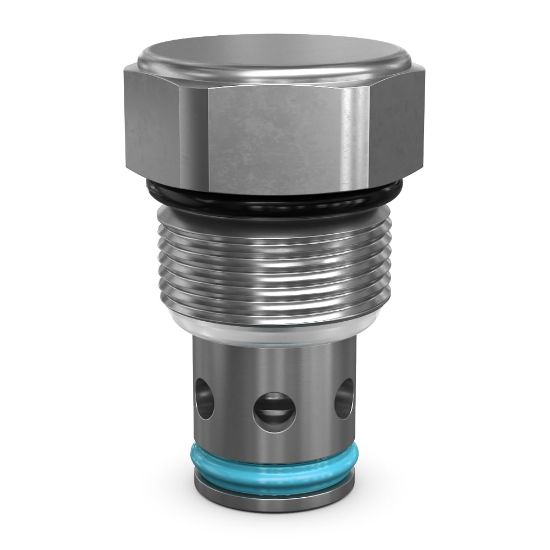

CVH103P50 - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU CVH103P50

$19.79/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	D-Ring (Standard)
Maximum Flow Rate	16 GAL/MIN, 60 L/MIN	Cracking Pressure	50 PSI, 3.4 BAR
Division	Hydraulic Systems Division	Body Material	n/a
Installation Torque	51 to 55 lb-ft	Weight	0.2 lb
For Fluid Type	Mineral-based Hydraulic Fluids	Maximum Operating Temperature	93 °C
Division	Hydraulic Cartridge Systems Division	Leak Rate	2
Maximum Flow Rate	16 Gal/min	Maximum Inlet Pressure Rating	5000 psi
Valve Material	Steel	Seal Material	D-Ring (Standard)
Flow Direction	1-2 Free Flow	Function	Standard Check
Cracking Pressure	50 psi	Cavity Size	C10-2
Minimum Operating Temperature	-37 °C	Flow Rate	n/a
Operating Temperature	-35 to 200 °F	Actuation Type	Pressure Sensing
Filter Efficiency Rating	SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Pressure	350 bar
