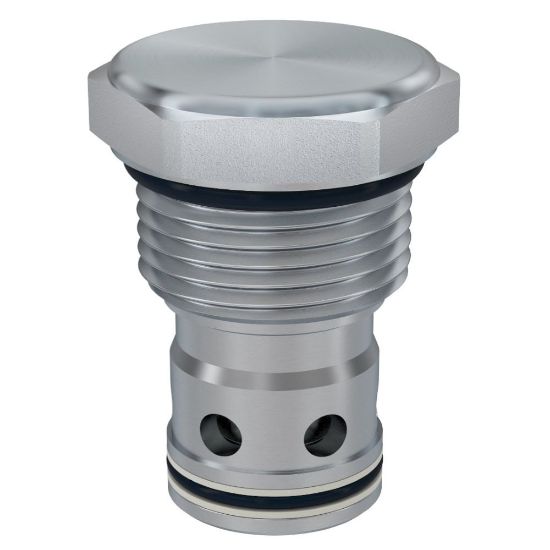

CVH121PV - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU CVH121PV

$76.56/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Cracking Pressure	25 PSI, 1.7 BAR	Maximum Flow Rate	32 GAL/MIN, 121 L/MIN
Maximum Operating Temperature	204 °C	Leak Rate	5
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	121 L/min
For Fluid Type	Mineral-based Hydraulic Fluids	Valve Material	Hardened Steel
Maximum Inlet Pressure Rating	5000 psi	Function	Standard Check
Seal Material	Fluorocarbon	Flow Direction	2-1 Checked
Cracking Pressure	1.7 bar	Minimum Operating Temperature	-15 °F
Cavity Size	C12-2	Flow Rate	n/a
Filter Efficiency Rating	ISO 4406 18/16/13	Actuation Type	Pressure Sensing
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-26 to 204 °C
Maximum Operating Pressure	350 bar	Body Material	n/a
Weight	0.14 kg	Division	Hydraulic Systems Division
Installation Torque	76 Nm
