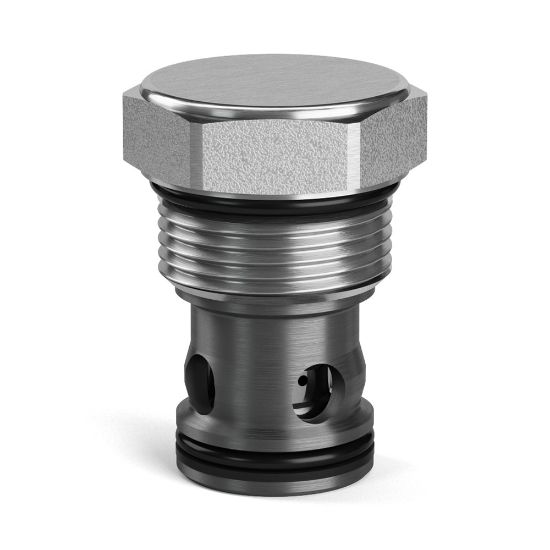

CVH161P65 - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	3 in stock

SKU CVH161P65

$100.09/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Cracking Pressure	65 PSI, 4.5 BAR	Maximum Flow Rate	60 GAL/MIN, 225 L/MIN
Minimum Operating Temperature	-34 °C	Cavity Size	C16-2
Flow Rate	n/a	Filter Efficiency Rating	SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Operating Pressure	350 bar
Operating Temperature	-34 to 121 °C	Actuation Type	Pressure Sensing
Installation Torque	99 Nm	Weight	0.27 kg
Body Material	n/a	Division	Hydraulic Systems Division
Division	Hydraulic Cartridge Systems Division	Leak Rate	5
Maximum Flow Rate	60 Gal/min	For Fluid Type	Mineral-based Hydraulic Fluids
Maximum Operating Temperature	250 °F	Valve Material	Steel
Seal Material	Nitrile	Maximum Inlet Pressure Rating	350 bar
Function	Standard Check	Cracking Pressure	65 psi
Flow Direction	2-1 Checked
