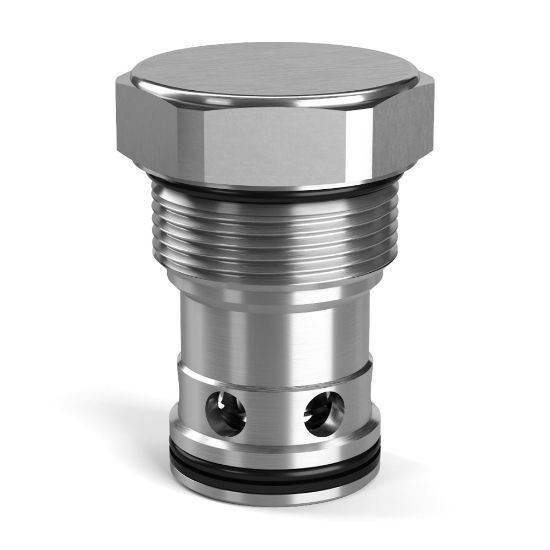

CVH201P65V - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU CVH201P65V

$147.03/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Maximum Flow Rate	80 GAL/MIN, 303 L/MIN	Cracking Pressure	65 PSI, 4.5 BAR
Cavity Size	C20-2	Cracking Pressure	4.5 bar
Minimum Operating Temperature	-15 °F	Operating Temperature	-15 to 400 °F
Flow Rate	n/a	Filter Efficiency Rating	SAE Class 4
Actuation Type	Pressure Sensing	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Body Material	n/a	Installation Torque	133 Nm
Weight	0.27 kg	Maximum Operating Pressure	350 bar
Division	Hydraulic Systems Division	Leak Rate	5
For Fluid Type	Synthetic Hydraulic Fluids	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	80 Gal/min	Maximum Inlet Pressure Rating	350 bar
Maximum Operating Temperature	400 °F	Valve Material	Steel
Seal Material	Fluorocarbon	Function	Standard Check
Flow Direction	1-2 Free Flow
