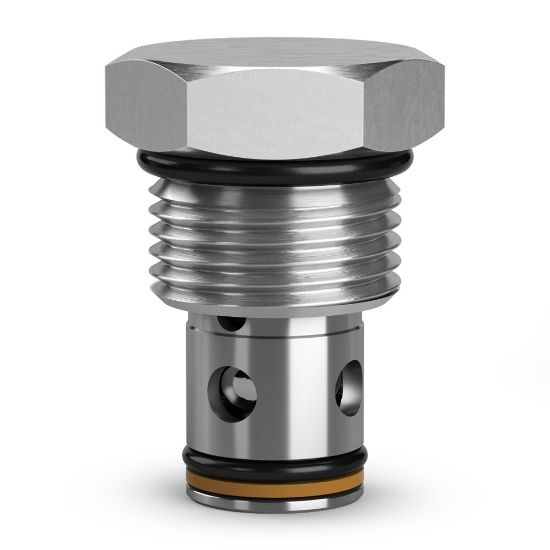

D04B2-0.2N - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 203 days
Partner Available:	80 in stock

SKU D04B2-0.2N

$50.10/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Cracking Pressure	3 PSI, 0.2 BAR	Maximum Flow Rate	42 GAL/MIN, 160 L/MIN
Flow Rate	24 Gal/min @ 100 Psi (7 bar) Nominal	Operating Temperature	-30 to 250 °F
Maximum Operating Pressure	6000 psi	Filter Efficiency Rating	ISO 4406 18/16/13
Actuation Type	Pressure Sensing	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Mobile Hydraulic Systems Division Europe	Installation Torque	37 lb-ft
Body Material	n/a	Weight	0.08 kg
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	160 L/min
Maximum Operating Temperature	121 °C	For Fluid Type	Mineral-based Hydraulic Fluids
Leak Rate	3 drops/min @ 6000 Psi (420 bar)	Seal Material	Nitrile
Valve Material	Hardened Steel (all operating parts)	Maximum Inlet Pressure Rating	6000 psi
Function	Standard Check	Flow Direction	2-1 Checked
Cracking Pressure	3 psi	Minimum Operating Temperature	-30 °F
Cavity Size	C10-2
