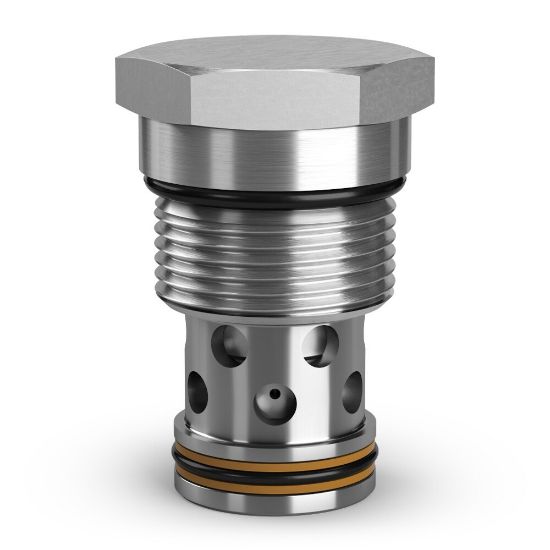

D06B2P0.0N - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 185 days
Partner Available:	Backordered

SKU D06B2P0.0N

$108.81/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Cracking Pressure	0 PSI, 0 BAR	Maximum Flow Rate	132 GAL/MIN, 500 L/MIN
Actuation Type	Pressure Sensing	Body Material	n/a
Filter Efficiency Rating	ISO 4406 18/16/13	Weight	0.6
Maximum Operating Pressure	6000	Division	Hydraulic Valve Systems Division Europe
Installation Torque	74	For Fluid Type	Mineral-based Hydraulic Fluids
Division	Hydraulic Valve Systems Division	Maximum Operating Temperature	250
Leak Rate	< 3 drops/min @ 6000 Psi (420 bar)	Maximum Flow Rate	132
Seal Material	Nitrile	Valve Material	Steel (all parts)
Maximum Inlet Pressure Rating	6000	Flow Direction	2-1 Checked
Function	Standard Check	Cracking Pressure	0
Minimum Operating Temperature	-30	Cavity Size	C16-2
Flow Rate	74 gal/min @ 100 Psi (7 bar) Nominal	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-30 to 250
