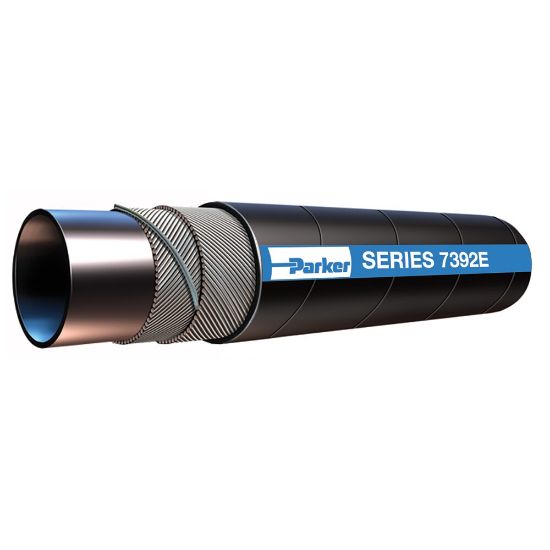

7392E-6000 - Standard Duty Water Suction Hose, Series 7392E

Name: 7392E-6000 - Standard Duty Water Suction Hose, Series 7392E
SKU: 7392E-6000
Price: 45.17 USD
Availability: InStock

Standard Duty Water Suction Hose is designed for water transfer in applications to 180°F and 150 psi, Series 7392E

Manufacturer: Parker

Availability:

18 in stock

WICHITA, KS

Partner Available:

279 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7392E-6000

$45.17/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	6
Cover Color	Black	Inside Diameter	152.4 mm
Weight	5.53 kg/m	Maximum Operating Pressure	150 psi
Vacuum Pressure Rating	29 Inch-Hg	Outside Diameter	168.3 mm
Maximum Operating Temperature	180 °F	Hose Inner Tube Material	Synthetic Rubber
Division	Hose Products Division	Cover Material	Synthetic Rubber
Media	Water	Design Factor	n/a
Application	Water	Minimum Bend Radius	711 mm
Hose Reinforcement Material	2 Plies of Textile with Wire Helix	Specifications Met	n/a
Minimum Operating Temperature	-40 °F
