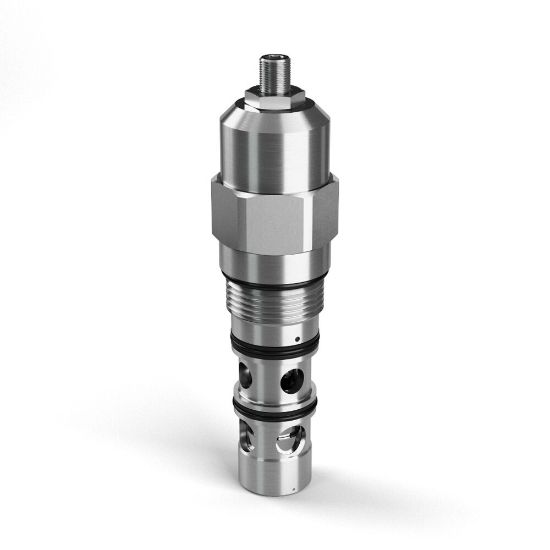

E2A125ZNMK2 - Standard Pilot Assisted Load Control Valves

Parker’s piloted load control valves are designed to operate independent of downstream pressure to prevent runaway loads under dynamic conditions using a pilot signal, handling pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU E2A125ZNMK2

$431.46/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Port Size	n/a	Adjustment Mechanism	Screw
Mounting Type	Threaded Cartridge Valve	Holding Pressure	3120 PSI, 215 BAR
Maximum Flow Rate	53 GAL/MIN, 200 L/MIN	Pilot Pressure Ratio	8:1
Pressure Control Range	725-5000 PSI, 50-350 BAR	Division	Hydraulic Cartridge Systems Division
Division	Mobile Hydraulic Systems Division Europe	Operating Temperature	-34° to +121° °C
Flow Rate	200 L/min	Port Size	N/A
Actuation Type	Pilot Operated	Maximum Flow Rate	53 Gal/min
Maximum Operating Pressure	350 bar	Maximum Operating Temperature	+121 °C
Minimum Operating Temperature	-30 °F	Body Material	N/A
Seal Material	Nitrile	Flow Direction	Cylinder port 1, Valve port 2, Pilot port 3
Weight	1.65 lb	Mounting Type	Threaded Cartridge Valve
Filter Efficiency Rating	ISO 4406:1999 Code 18/16/13	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Function	Counterbalance Valve	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Port Thread Size	N/A	Leak Rate	6 @ 1450 PSI (100 BAR) drops/min
Cavity Size	3M	Pilot Location	External
Valve Material	All parts steel. All operating parts hardened steel	Installation Torque	74 lb-ft
Maximum Inlet Pressure Rating	5000 psi	Adjustment Mechanism	Screw
Pressure Control Range	725-5000 psi	Pressure Control Sensitivity	34 per turn bar
Pilot Pressure Ratio	8:1	Holding Pressure	3120 psi
