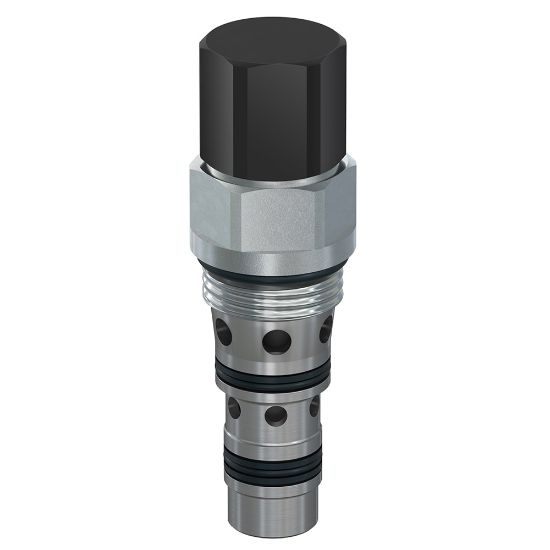

MHC-010-SBSD-00B - Standard Pilot Assisted Load Control Valves

Parker’s piloted load control valves are designed to operate independent of downstream pressure to prevent runaway loads under dynamic conditions using a pilot signal, handling pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU MHC-010-SBSD-00B

$161.17/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Port Size	n/a	Mounting Type	Threaded Cartridge Valve
Holding Pressure	1000 PSI, 69 BAR	Maximum Flow Rate	10 GAL/MIN, 37.5 L/MIN
Adjustment Mechanism	Standard (adjustable)	Pilot Pressure Ratio	4:1
Pressure Control Range	N/A	Body Material	N/A
Pilot Location	External	Weight	0.38 kg
Maximum Operating Pressure	350 bar	Installation Torque	50-55 lb-ft
Pressure Control Sensitivity	N/A bar	Actuation Type	Pilot Operated
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-34 to +121 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Holding Pressure	1000 psi
Maximum Operating Temperature	+250 °F	Leak Rate	5 @ 80% of setting drops/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	37.5 L/min	Division	Hydraulic Systems Division
Pilot Pressure Ratio	4:1	Port Size	N/A
Flow Direction	Cylinder port 2, Valve port 3, Pilot port 1	Function	Counterbalance Valve
Maximum Inlet Pressure Rating	350 bar	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	Nitrile	Mounting Type	Threaded Cartridge Valve
Flow Rate	37.5 L/min	Pressure Control Range	N/A psi
Adjustment Mechanism	Standard (adjustable)	Minimum Operating Temperature	-30 °F
Cavity Size	CDD-1010
