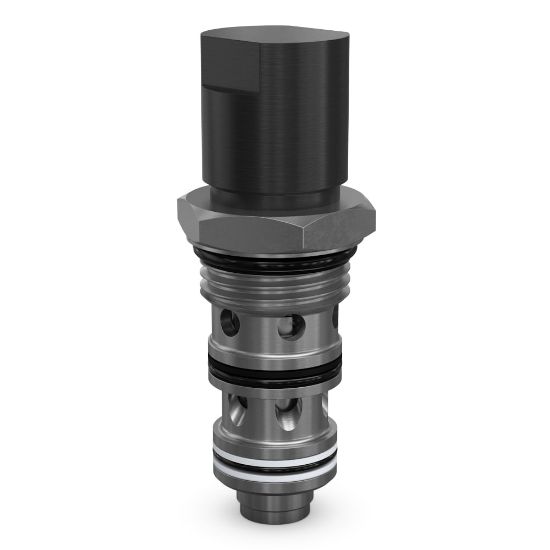

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

MHC-022-SCSJ-00B - Standard Pilot Assisted Load Control Valves

Parker’s piloted load control valves are designed to operate independent of downstream pressure to prevent runaway loads under dynamic conditions using a pilot signal, handling pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	Backordered

SKU MHC-022-SCSJ-00B

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Port Size	n/a	Mounting Type	Threaded Cartridge Valve
Pilot Pressure Ratio	5:1	Adjustment Mechanism	Standard (adjustable)
Pressure Control Range	N/A	Holding Pressure	3500 PSI, 240 BAR
Maximum Flow Rate	25 GAL/MIN, 93.75 L/MIN	Division	Hydraulic Cartridge Systems Division
Pilot Pressure Ratio	5:1	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Installation Torque	102-108 Nm	Body Material	N/A
Division	Hydraulic Systems Division	Function	Counterbalance Valve
Maximum Inlet Pressure Rating	350 bar	Valve Material	All parts steel. All operating parts hardened steel
Maximum Flow Rate	93.75 L/min	Seal Material	Nitrile
Leak Rate	5 @ 80% of setting drops/min	Maximum Operating Temperature	+121 °C
Cavity Size	CDD-1036	Minimum Operating Temperature	-30 °F
Mounting Type	Threaded Cartridge Valve	Adjustment Mechanism	Standard (adjustable)
Flow Direction	Cylinder port 2, Valve port 3, Pilot port 1	Port Size	N/A
Maximum Operating Pressure	5000 psi	Weight	0.38 kg
Pilot Location	External	Actuation Type	Pilot Operated
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Operating Temperature	-30 to +250 °F
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Pressure Control Range	N/A psi
Holding Pressure	240 bar	Pressure Control Sensitivity	N/A psi
Flow Rate	93.75 L/min
