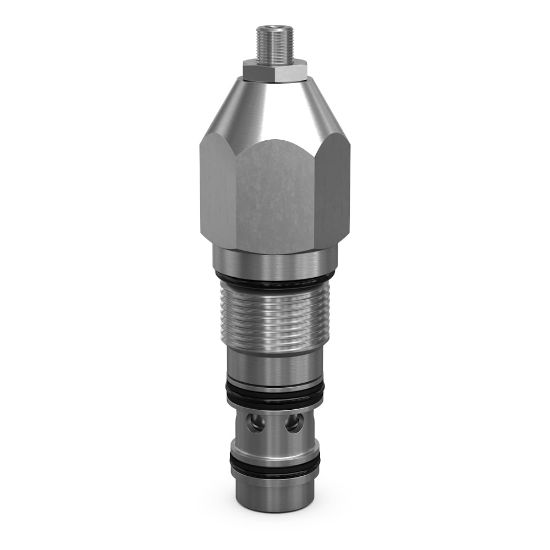

E6A060ZN409 - Standard Pilot Vented Load Control Valves

Parker’s vented load control valves are designed to operate independent of downstream pressure to prevent runaway loads under all dynamic conditions, handling pressures up to 350 bar (5000 psi) and flows up to 113 lpm (30 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	23 in stock

SKU E6A060ZN409

$844.71/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Port Size	n/a	Adjustment Mechanism	Screw
Mounting Type	Threaded Cartridge Valve	Holding Pressure	3120 PSI, 215 BAR
Pilot Pressure Ratio	8:1	Pressure Control Range	725-5000 PSI, 50-350 BAR
Maximum Flow Rate	48 GAL/MIN, 180 L/MIN	Pilot Pressure Ratio	8:01
Division	Mobile Hydraulic Systems Division Europe	Installation Torque	85 Nm
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	180 L/min	Holding Pressure	3120 psi
Pressure Control Sensitivity	50 per turn bar	Flow Rate	48 Gal/min
Actuation Type	Pilot Operated, Vented	Operating Temperature	-30 to +250 °F
Maximum Kinematic Viscosity	Mineral-based or synthetic with lubricating properties at viscosities of 45-2000 SSU (6 to 420 cSt) cSt	Body Material	N/A
Pilot Location	External	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Weight	0.53 kg	Maximum Operating Pressure	350 bar
Adjustment Mechanism	Screw Adjustment	Cavity Size	3C
Minimum Operating Temperature	-30 °F	Mounting Type	Threaded Cartridge Valve
Port Thread Size	N/A	Pressure Control Range	725-5000 psi
Leak Rate	6 @ 1450 PSI (100 BAR) drops/min	Maximum Inlet Pressure Rating	5000 psi
Maximum Operating Temperature	+250 °F	Seal Material	Nitrile
Valve Material	All parts steel. All operating parts hardened steel	Function	Counterbalance Valve
Flow Direction	Cylinder port 1, Valve port 2, Pilot port 3	Port Size	N/A
