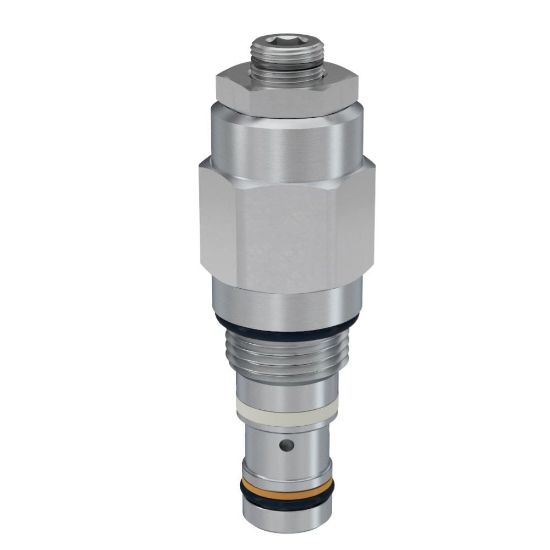

E6K020ZN - Standard Pilot Vented Load Control Valves

Parker’s vented load control valves are designed to operate independent of downstream pressure to prevent runaway loads under all dynamic conditions, handling pressures up to 350 bar (5000 psi) and flows up to 113 lpm (30 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 290 days
Partner Available:	Backordered

SKU E6K020ZN

$411.02/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Port Size	n/a	Adjustment Mechanism	Screw
Mounting Type	Threaded Cartridge Valve	Holding Pressure	3120 PSI, 215 BAR
Maximum Flow Rate	5.3 GAL/MIN, 20 L/MIN	Pilot Pressure Ratio	15:1
Pressure Control Range	1450-5075 PSI, 100-350 BAR	Leak Rate	6 @ 1450 PSI (100 BAR) drops/min
Maximum Operating Temperature	+121 °C	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Flow Rate	20 L/min	Division	Hydraulic Cartridge Systems Division
Maximum Inlet Pressure Rating	5000 psi	Seal Material	Nitrile
Valve Material	All parts steel. All operating parts hardened steel	Body Material	N/A
Pilot Location	External	Maximum Operating Pressure	5000 psi
Weight	0.08 kg	Installation Torque	30 Nm
Division	Mobile Hydraulic Systems Division Europe	Pilot Pressure Ratio	15:1
Mounting Type	Threaded Cartridge Valve	Flow Rate	5.3 Gal/min
Port Thread Size	N/A	Pressure Control Range	1450-5000 psi
Actuation Type	Pilot Operated, Vented	Pressure Control Sensitivity	114 per turn bar
Operating Temperature	-34° to +121° °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Holding Pressure	3120 psi
Flow Direction	Cylinder port 1, Valve port 2, Pilot port 3	Port Size	N/A
Function	Counterbalance Valve	Adjustment Mechanism	Screw
Cavity Size	53-1	Minimum Operating Temperature	-30 °F
