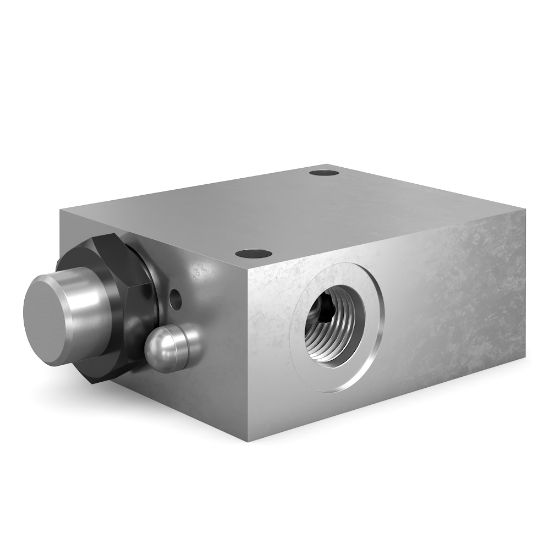

MHB-015-WBEH-52N - Standard Pilot Vented Load Control Valves

Parker’s vented load control valves are designed to operate independent of downstream pressure to prevent runaway loads under all dynamic conditions, handling pressures up to 350 bar (5000 psi) and flows up to 113 lpm (30 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 264 days
Partner Available:	Backordered

SKU MHB-015-WBEH-52N

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Tamper Resistant	Holding Pressure	3000 PSI, 210 BAR
Pilot Pressure Ratio	3:1	Port Size	SAE-8
Maximum Flow Rate	15 GAL/MIN, 56 L/MIN	Mounting Type	Double Gasket
Pressure Control Range	1500-3000 PSI, 105-210 BAE	Weight	3 lb
Maximum Operating Pressure	3000 psi	Pilot Location	Internal
Body Material	Aluminum	Installation Torque	N/A Nm
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Pressure Control Sensitivity	N/A psi	Holding Pressure	3000 psi
Actuation Type	Pilot Operated, Vented	Operating Temperature	-30 to +250 °F
Flow Rate	15 Gal/min	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	15 Gal/min	Leak Rate	5 @ 80% of setting drops/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Division	Hydraulic Systems Division
Pilot Pressure Ratio	3:1	Flow Direction	Cylinder port C, Valve port V
Function	Counterbalance Valve	Port Size	SAE-8
Seal Material	Nitrile	Maximum Inlet Pressure Rating	210 bar
Maximum Operating Temperature	+250 °F	Valve Material	All parts steel. All operating parts hardened steel
Mounting Type	Double Gasket	Pressure Control Range	105-210 bar
Minimum Operating Temperature	-34 °C	Adjustment Mechanism	Tamper Resistant
Cavity Size	N/A
