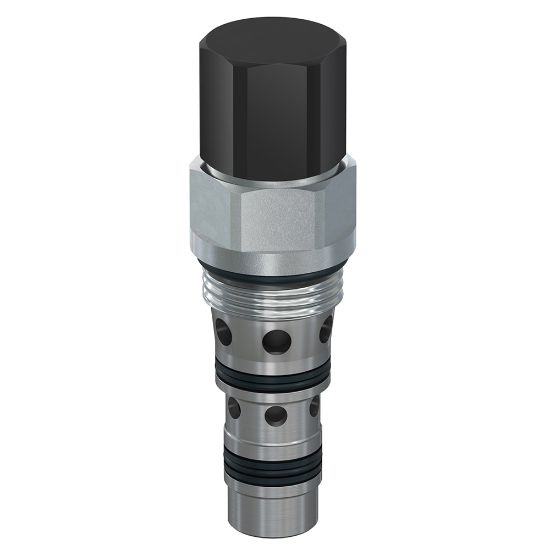

MHC-010-VBSH-00F - Standard Pilot Vented Load Control Valves

Parker’s vented load control valves are designed to operate independent of downstream pressure to prevent runaway loads under all dynamic conditions, handling pressures up to 350 bar (5000 psi) and flows up to 113 lpm (30 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU MHC-010-VBSH-00F

$298.85/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Port Size	n/a	Mounting Type	Threaded Cartridge Valve
Holding Pressure	3000 PSI, 210 BAR	Maximum Flow Rate	10 GAL/MIN, 37.5 L/MIN
Adjustment Mechanism	Standard (adjustable)	Pilot Pressure Ratio	4:1
Pressure Control Range	N/A	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Pressure Control Sensitivity	N/A psi	Holding Pressure	210 bar
Pressure Control Range	N/A bar	Flow Rate	10 Gal/min
Minimum Operating Temperature	-15 °F	Adjustment Mechanism	Standard (adjustable)
Mounting Type	Threaded Cartridge Valve	Cavity Size	CDD-1010
Weight	0.38 kg	Division	Hydraulic Systems Division
Body Material	N/A	Installation Torque	68-75 Nm
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Operating Pressure	350 bar
Pilot Location	External	Operating Temperature	-26 to +204 °C
Actuation Type	Pilot Operated, Vented	Seal Material	Fluorocarbon
Leak Rate	5 @ 80% of setting drops/min	Maximum Flow Rate	10 Gal/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+204 °C
Valve Material	All parts steel. All operating parts hardened steel	Division	Hydraulic Cartridge Systems Division
Pilot Pressure Ratio	4:1	Flow Direction	Cylinder port 2, Valve port 3, Pilot port 1
Port Size	N/A	Maximum Inlet Pressure Rating	350 bar
Function	Counterbalance Valve
