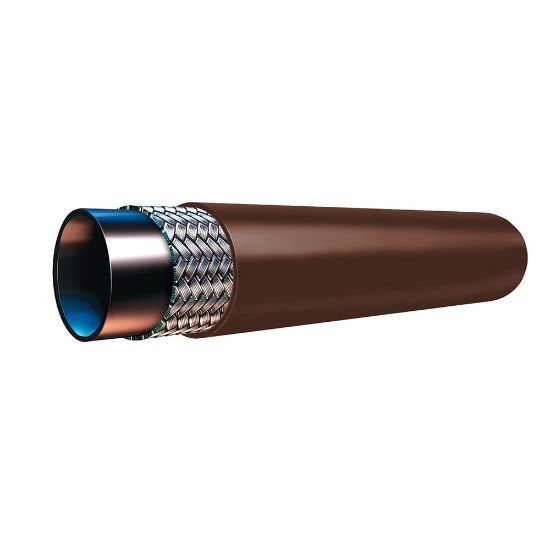

929BJ-12 - Static Dissipative Hose - 929BJ

Parker's 929BJ hose features a static-dissipative PTFE core tube and a brown silicone, steam cleanable jacket to provide a smooth cover to protect the stainless steel wire reinforcement against wear, fraying and contaminants.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 929BJ-12

$71.12/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	5/8
Hose Inner Tube Material	Polytetrafluoroethylene (PTFE)	Product Type	PTFE Hose
Media	Air	Design Factor	4:1
Application	Adhesive Dispensing	Specifications Met	SAE J517 and 100R1, Type 4B
Cover Material	Silicone	Product Style	Static Dissipative
Minimum Operating Temperature	-65	Minimum Bend Radius	6-1/2
Hose Reinforcement Material	Braid of 304 Stainless Steel	Vacuum Pressure Rating	304.8
Weight	0.43	Outside Diameter	1.040
Inside Diameter	5/8	Maximum Operating Pressure	1200
Compatible Fitting	91N Series	Maximum Operating Temperature	450
Division	Parflex Division	Size	-12
