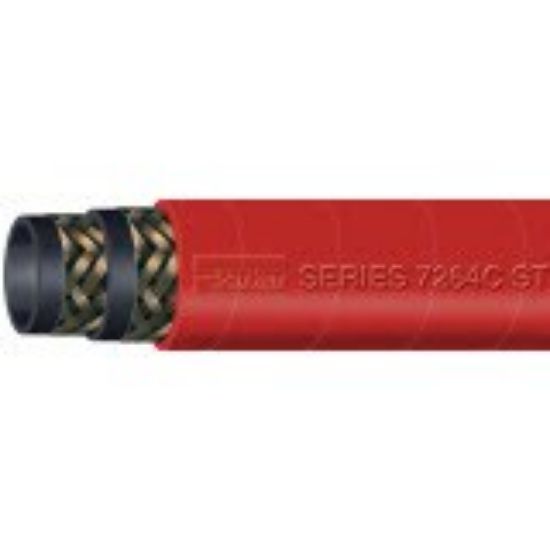

7264C-752 - STEAM-LANCE® 250 COMPACT STEAM HOSE

Steam-Lance® 250 Compact Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 30 days
Partner Available:	365 in stock

SKU 7264C-752

$12.39/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Red
Hose I.D. (inch)	3/4	Division	Hose Products Division
Media	Steam	Size	-12
Maximum Operating Temperature	208 °C (Saturated Steam)	Hose Inner Tube Material	Black
Hose Reinforcement Material	Multiple Braids of Wire	Minimum Bend Radius	9 inch
Cover Structure	Perforated	Minimum Operating Temperature	-40 °C
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Nominal Hose Inside Diameter	20 mm
Inside Diameter	3/4 inch	Outside Diameter	1.2 inch
Weight	0.7 kg/m	Maximum Operating Pressure	250 bar (Superheated Steam)
Application	Processing	Specifications Met	ISO 6134, Type 2

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
