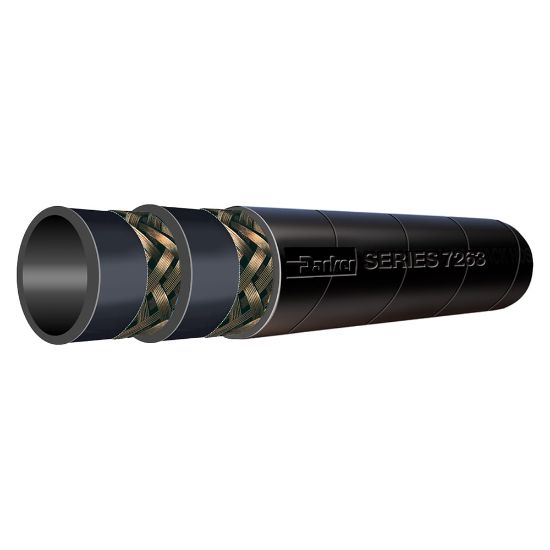

7263-1002A - STEAM-LANCE® 250 STEAM HOSE

Steam-Lance® 250 Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	3 in stock

SKU 7263-1002A

$20.54/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Black
Hose I.D. (inch)	1	Packaging	Reel
Media	Steam	Hose Inner Tube Material	Black
Size	-16	Maximum Operating Temperature	450 °F (Superheated Steam)
Specifications Met	ISO 6134, Type 2	Minimum Operating Temperature	-40 °F
Hose Reinforcement Material	Multiple Braids of Wire	Cover Structure	Perforated
Minimum Bend Radius	12 inch	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Weight	1.27 kg/m	Maximum Operating Pressure	261 bar (Saturated Steam)
Outside Diameter	1.6 inch	Nominal Hose Inside Diameter	25 mm
Inside Diameter	1 inch	Application	Processing
Division	Hose Products Division

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
