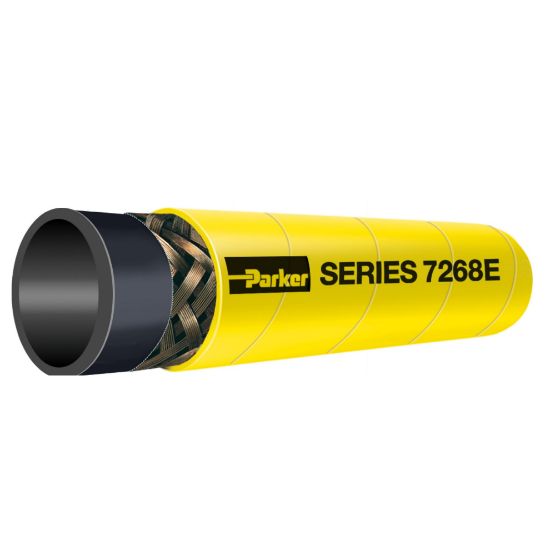

7268E-2001100 - STINGER™ II High Pressure Wire Braid Multipurpose Oil Resistant Hose, Series 7268E

Stinger II High Pressure Wire Braid Multipurpose Oil Resistant Hose is designed for air, mild chemicals, oil and water in applications to 212°F and 1000 psi, Series 7268E

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU 7268E-2001100

$42.94/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2
Standard Package Quantity	100 ft	Application	Oil
Minimum Bend Radius	18 inch	Specifications Met	MSHA
Minimum Operating Temperature	-29 °C	Hose Reinforcement Material	1 Braid of Wire
Cover Color	Yellow	Inside Diameter	2 inch
Weight	1.70 kg/m	Outside Diameter	62 mm
Maximum Operating Pressure	1000 psi	Maximum Operating Temperature	212 °F
Hose Inner Tube Material	Nitrile	Division	Hose Products Division
Cover Material	Nitrile	Media	Water
