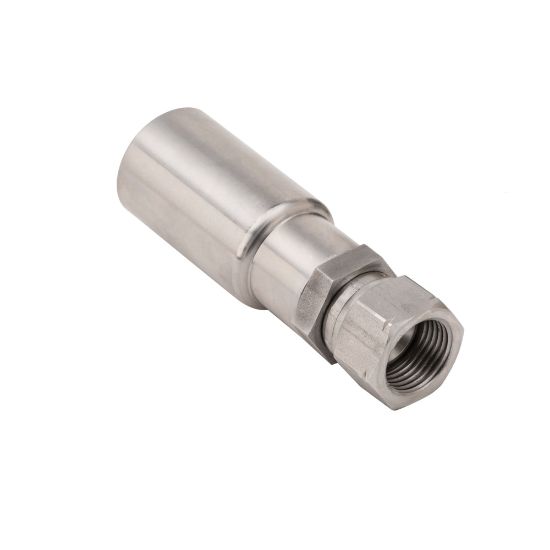

106E3-4-4C - Subsea Fittings (Series E3 and E4)

Parker's E3/E4 fittings are designed to be used with 2390N High Pressure Subsea hose. These fittings eliminate the need for adaptors and provide the highest level of resistance to moisture ingression.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 106E3-4-4C

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	JIC Straight
Hose I.D. (inch)	1/4"	Flange Size	n/a
Fitting Thread Size	7/16"-20	Length	2.46"
Maximum Operating Pressure	345 bar	Shape	Straight
Division	Parflex Division	Connection Type	Crimp
Thread Size	7/16"-20 inch	Hose Inside Diameter	6 mm
Length	62 mm	Flange Size	n/a
Materials of Construction	Stainless Steel	Application	Subsea
