Suction and Return Line Hose 62-300 PSI – 811 Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

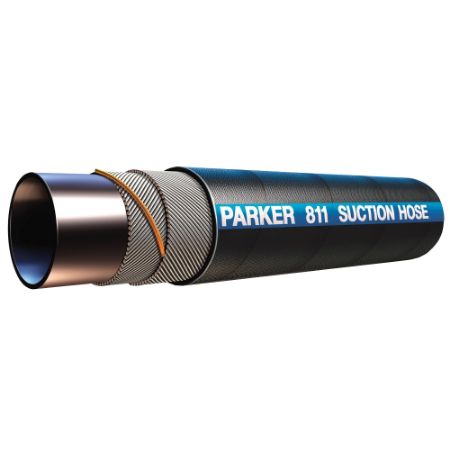

Parker’s 811 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications. The 811 hose is designed, built, and tested to meet SAE 100R4 performance specifications. Sizes range from ¾” to 2-½” in diameter to fit the requirements of various markets.

Markets:

• Transportation

• RV & Bus

• Military

• Construction

• Agriculture

• Grounds & Building Maintenance

• Forestry

• Railroad

• Utility Equipment

• Personnel Lift Equipment

• Machine Tool

• Oil Field Service

• Waste & Refuse

• Material Handling

• Marine

• Paving & Road Maintenance

• Ground Support Equipment

• Industrial

• Mining

Features/Benefits:

• 62-300 PSI working pressure in different sizes

• Half SAE bend radius for ease of installation and low force to flex

• SAE J517 100R4 / SAE J1942 Performance Specifications

• Oil and weather-resistant synthetic rubber cover

Applications:

• Petroleum base hydraulic fluids and lubricating oils

Compatible Fittings:

• 81 series fittings (for -12 to -32)

• 88 series fittings (for -12 to -40)

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Hose I.D. (size)	Hose Cover Type	Media	Hose Inner Tube Material	Application	Hose Reinforcement Material	Specifications Met	Cover Material	Minimum Bend Radius	Minimum Operating Temperature	Vacuum Pressure Rating	Weight	Inside Diameter	Maximum Operating Pressure	Outside Diameter	Nominal Hose Inside Diameter	Compatible Fitting	Maximum Operating Temperature	Division
811-12	179 in stock	5014 in stock	$13.54/foot	FT	-12	Standard Cover	Petroleum Hydraulic Fluids	Synthetic Rubber	Petroleum Base Hydraulic Fluids	Multiple Layers of Spiral Fiber with Wire Helix	SAE J1943	Synthetic Rubber	64 mm	-40 °F	25 Inch-Hg	0.42 lb/ft	19 mm	300 psi (w/ 81/88DB)	1.180 inch	19 mm	43 Series	212 °F	Hose Products Division
811-16	515 in stock	4918 in stock	$16.31/foot	FT	-16	Standard Cover	Petroleum Hydraulic Fluids	Synthetic Rubber	Petroleum Base Hydraulic Fluids	Multiple Layers of Spiral Fiber with Wire Helix	SAE 100R4	Synthetic Rubber	3 inch	-40 °C	84 kPa	0.96 kg/m	1 inch	17 bar (w/ 81/88DB)	38 mm	25 mm	88 Series	100 °C	Hose Products Division
811-20	295 in stock	4230 in stock	$23.07/foot	FT	-20	Standard Cover	Lubricants	Synthetic Rubber	Lubricating Oils	Multiple Layers of Spiral Fiber with Wire Helix	SAE 100R4	Synthetic Rubber	102 mm	-40 °C	25 Inch-Hg	0.82 lb/ft	31.8 mm	50 psi (w/ 88HC)	45 mm	31 mm	43 Series	100 °C	Hose Products Division
811-24	545 in stock	3301 in stock	$30.82/foot	FT	-24	Standard Cover	Lubricants	Synthetic Rubber	Petroleum Base Hydraulic Fluids	Multiple Layers of Spiral Fiber with Wire Helix	USCG HF	Synthetic Rubber	5 inch	-40 °F	84 kPa	1.04 lb/ft	1-1/2 inch	3 bar (w/ 88HC)	2.050 inch	38 mm	88 Series	100 °C	Hose Products Division
811-32	678 in stock	3288 in stock	$38.63/foot	FT	-32	Standard Cover	Petroleum Hydraulic Fluids	Synthetic Rubber	Lubricating Oils	Multiple Layers of Spiral Fiber with Wire Helix	USCG HF	Synthetic Rubber	152 mm	-40 °F	84 kPa	1.87 kg/m	2 inch	100 psi (w/ 81/88DB)	63.6 mm	50 mm	43 Series	212 °F	Hose Products Division
811-40	187 in stock	830 in stock	$53.45/foot	FT	-40	Standard Cover	Lubricants	Synthetic Rubber	Petroleum Base Hydraulic Fluids	Multiple Layers of Spiral Fiber with Wire Helix	SAE 100R4	Synthetic Rubber	178 mm	-40 °C	25 Inch-Hg	2.45 kg/m	2-1/2 inch	4 bar (w/ 88HC)	3 inch	63 mm	81 Series	212 °F	Hose Products Division
