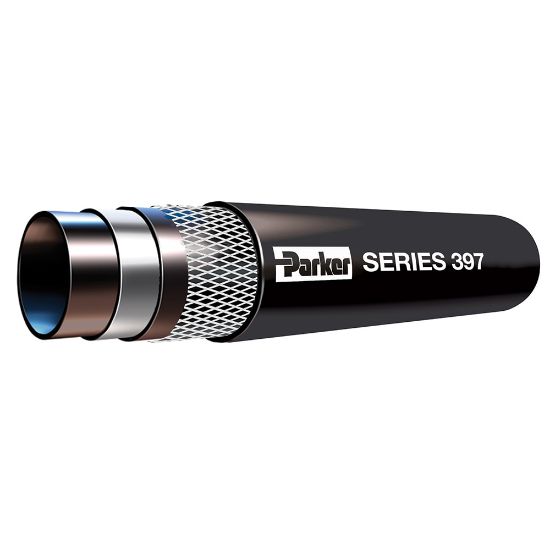

39704 - SUPER-FLEX® FL Barrier Fuel Line Hose, Series 397

Super-Flex Barrier Fuel Line Hose is designed for engine fuel supply in applications to 257°F and 100 psi, Series 397

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	4951 in stock

SKU 39704

$3.45/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Maximum Working Pressure (psi)	100	Division	Hose Products Division
Length per Package	250 ft	Compatible Fitting	HY Series
Hose Inner Tube Material	Black	Maximum Operating Temperature	125 °C
Vacuum Pressure Rating	24 Inch-Hg	Maximum Operating Pressure	100 psi
Weight	0.09 lb/ft	Inside Diameter	1/4 inch
Specifications Met	EPA	Application	Boat
Hose Reinforcement Material	1 Braid of Textile	Package Type	Reel
Outside Diameter	12.7 mm	Media	Fuels (Diesel, Gasoline) - Check fuel type with our catalogue chart.
Tube Material	Nitrile and Translucent Thermoplastic Barrier	Minimum Operating Temperature	-34 °C
Cover Material	Chlorinated Polyethylene Rubber (CPE)	Minimum Bend Radius	1.5 inch
Length	76.2 m Supplied in reels, with max. 3 lengths at least 7.62 m long.	Cover Structure	Smooth
