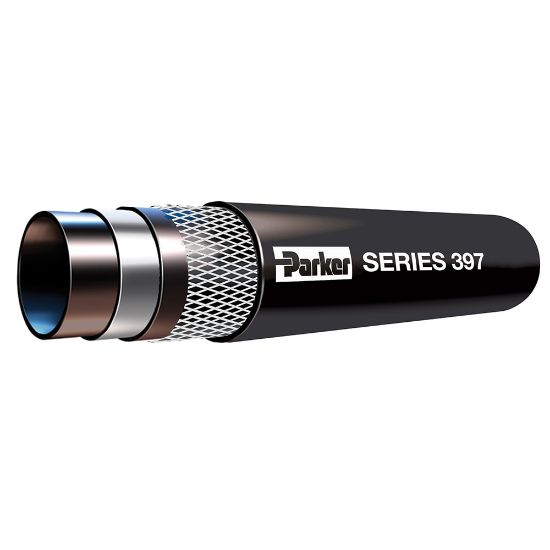

39706 - SUPER-FLEX® FL Barrier Fuel Line Hose, Series 397

Super-Flex Barrier Fuel Line Hose is designed for engine fuel supply in applications to 257°F and 100 psi, Series 397

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	3806 in stock

SKU 39706

$4.37/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Maximum Working Pressure (psi)	100	Division	Hose Products Division
Length per Package	250 ft	Application	Boat
Package Type	Reel	Inside Diameter	3/8 inch
Weight	0.17 kg/m	Maximum Operating Pressure	6.9 bar
Outside Diameter	15.9 mm	Vacuum Pressure Rating	24 Inch-Hg
Length	76.2 m Supplied in reels, with max. 3 lengths at least 7.62 m long.	Cover Material	Chlorinated Polyethylene Rubber (CPE)
Minimum Bend Radius	2.5 inch	Minimum Operating Temperature	-30 °C
Hose Reinforcement Material	1 Braid of Textile	Specifications Met	EPA
Cover Structure	Smooth	Hose Inner Tube Material	Nitrile/Translucent Thermoplastic Barrier
Compatible Fitting	HY Series	Maximum Operating Temperature	125 °C
Tube Material	Nitrile and Translucent Thermoplastic Barrier	Media	Fuels (Diesel, Gasoline) - Check fuel type with our catalogue chart.

Product resources

Compliance, Certifications & Safety

EPA Certificate of Conformity-Current Year-Series 397 (PDF)

Literature and Reference Materials
