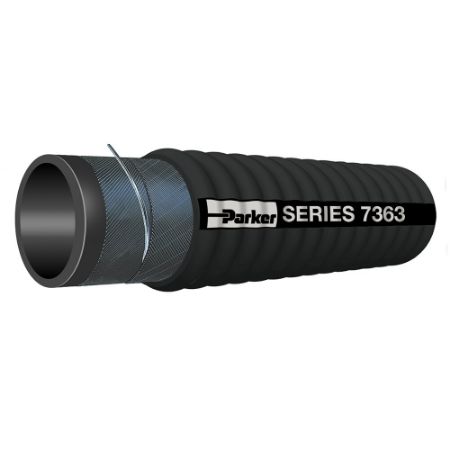

SUPER-FLEX® Large Diameter Corrugated Vacuum Hose, Series 7363
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Series 7363 Concrete Placement Hose provides excellent heavy duty service as a delivery/placement connection across multiple medium pressure transfer and applications. The thick rubber tube provides additional resistance to abrasive materials going through the hose, and the corrugated cover provides kink resistance for unimpeded flow, additional flexibility for easy handling and resistance to abrasion and weathering for maximum performance.
Markets:
• Construction
• General Industrial
• Local & Municipal Governments
Features/Benefits:
• Tube: Black 3/16” thick natural rubber/SBR for abrasion resistance to 160°F.
• Reinforcement: Multiple textile plies for strength and durability, and a wire helix for full suction capability and a path to conduct a static charge to ground.
• Cover: Black corrugated rubber/SBR for resistance to abrasion, cuts, gouging, scuffs and weathering.
• Lengths: Available in optional 200-foot lengths for maximum efficiency of inventory.
Applications:
- media
• Abrasive materials
• Debris
• Water
- usage
• Bulk loading/unloading
• Construction sites
• Rail yards
Safety/Technical:
• Design Factor: 3:1
• Click here to access CrimpSource® for current crimp specifications.
| Action | SKU | Availability | Partner Available | Price | UOM | Maximum Working Pressure (psi) | Hose I.D. (inch) | Division | Application | Media | Maximum Operating Pressure | Maximum Operating Temperature | Minimum Operating Temperature | Specifications Met | Weight | Outside Diameter | Cover Material | Inside Diameter | Minimum Bend Radius | Vacuum Pressure Rating | Hose Inner Tube Material | Hose Reinforcement Material | Cover Color | Design Factor | Package Type | Length per Package | Cover Structure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7363-3000 | Backordered | 44 in stock | $59.20/foot | FT | 100 | 3 | Hose Products Division | Material Handling | Dry Abrasive Powders (Debris) | 100 psi | 160 °F | -40 °F | n/a | 2.35 lb/ft | 3.800 inch | Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend | 3 inch | 9 inch | Full | Black | 3 Plies of Textile with Wire Helix | Black | 3:1 | Coil | 100 ft | Wrapped | |
| 7363-4000 | Backordered | 113 in stock | $69.81/foot | FT | 100 | 4 | Hose Products Division | Material Handling | Water | 6.9 bar | 160 °F | -40 °F | n/a | 3.26 lb/ft | 123.1 mm | Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend | 4 inch | 304.8 mm | Full | Black | 3 Plies of Textile with Wire Helix | Black | 3:1 | Coil | 100 ft | Wrapped | |
| 7363-5000 | Backordered | 19 in stock | $100.60/foot | FT | 100 | 5 | Hose Products Division | Material Handling | Wet Abrasive Powders | 100 psi | 71 °C | -40 °C | n/a | 4.64 lb/ft | 5.929 inch | Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend | 5 inch | 381 mm | Full | Black | 3 Plies of Textile with Wire Helix | Black | 3:1 | Coil | 100 ft | Wrapped | |
| 7363-6000 | Backordered | 45 in stock | $119.11/foot | FT | 100 | 6 | Hose Products Division | Material Handling | Water | 6.9 bar | 160 °F | -40 °F | n/a | 8.34 kg/m | 6.937 inch | Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend | 152.4 mm | 18 inch | Full | Black | 3 Plies of Textile with Wire Helix | Black | 3:1 | Coil | 100 ft | Wrapped |
