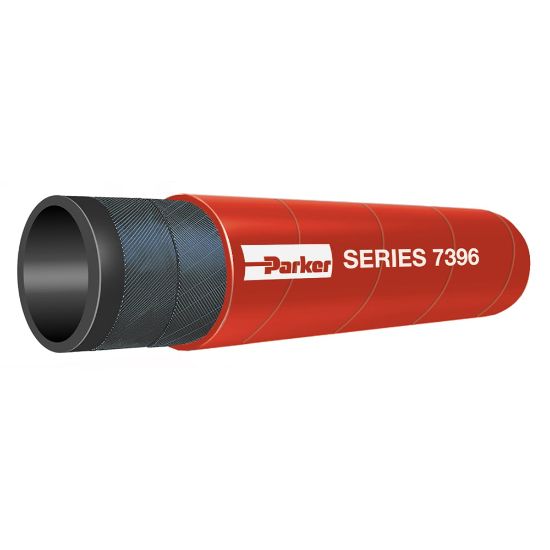

7396-125300200 - SUPER MPT® II Nonconductive Multipurpose Oil Resistant Hose, Series 7396

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 20 days
Partner Available:	169 in stock

SKU 7396-125300200

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1-1/4
Standard Pack Qty (ft)	200	Maximum Working Pressure (psi)	300
Division	Hose Products Division	Application	Air
Media	Lubricants (Oils)	Maximum Operating Pressure	300 psi
Maximum Operating Temperature	70 °C (Air)	Minimum Operating Temperature	-20 °F
Specifications Met	ARPM Class C Tube (non-conductive)	Weight	1.18 kg/m
Outside Diameter	45.7 mm	Cover Material	Chloroprene Rubber (CR)
Inside Diameter	31.8 mm	Compatible Fitting	71 Series
Minimum Bend Radius	190.5 mm	Hose Inner Tube Material	Nitrile
Hose Reinforcement Material	2 Plies of Textile	Cover Color	Red
Package Type	Coil	Cover Structure	Wrapped

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
