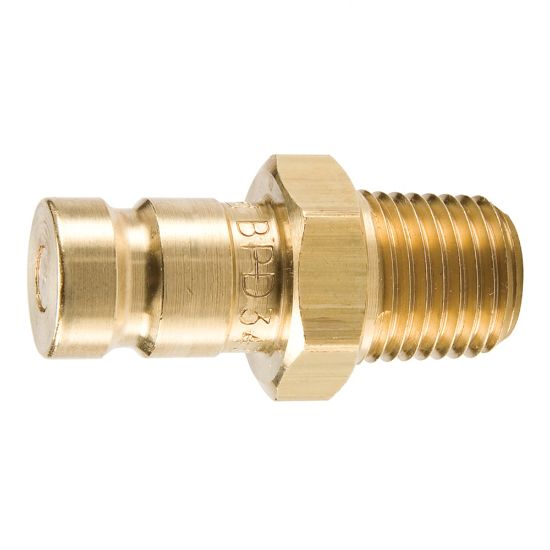

BPD323Y - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU BPD323Y

$25.48/each

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Connection Type	Male NPTF	Tube Size (inch)	na
Connection Thread Size (inch)	1/8 - 27	Division	Quick Coupling Division
Valve Type	Non-spill	Flow Rate	0.8 Gal/min
Maximum Operating Pressure	300 psi	Body Material	Brass
Minimum Operating Temperature	-15 °F	Plating Type	na
Hex Size	0.63 inch	Specifications Met	SAE J1502 / ISO 15171-1
Application	Diagnostic	Seal Material	Fluorocarbon
Body Size	1/8 inch	Maximum Operating Temperature	400 °F
Product Type	Push to connect
