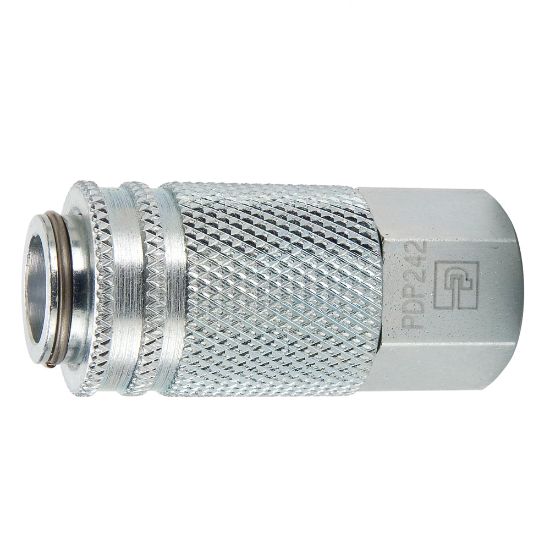

PD242Y - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU PD242Y

$73.77/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Female NPTF
Coupling Half	Female Coupler	Connection Thread Size (inch)	1/4 - 18
Tube Size (inch)	na	Body Size	1/8 inch
Maximum Operating Temperature	400 °F	Product Type	Push to Connect
Seal Material	Fluorocarbon	Body Material	Steel
Valve Type	Non-spill	Division	Quick Coupling Division
Flow Rate	0.8 Gal/min	Application	Diagnostics
Maximum Operating Pressure	6000 psi	Specifications Met	ISO 15171-1
Minimum Operating Temperature	-15 °F	Hex Size	0.81 inch
Plating Type	Zinc with Clear Trivalent Chromate
