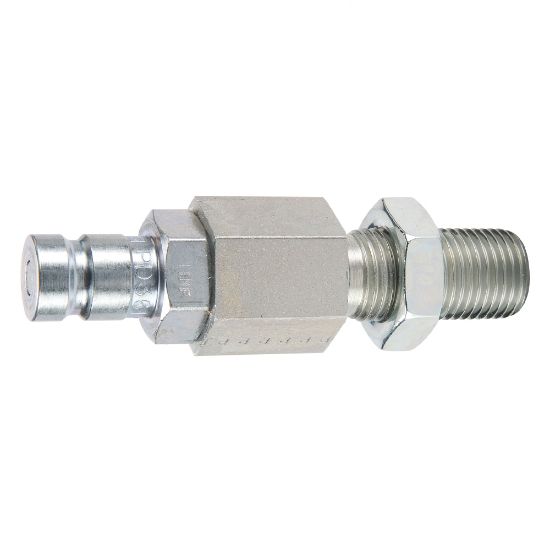

PD346 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	96 in stock

SKU PD346

$46.95/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	9/16 - 18 UNF
Coupling Half	Male Nipple	Tube Size (inch)	1/4
Connection Type	Male bulkhead Seal-Lok	Seal Material	Nitrile
Product Type	Push to connect	Plating Type	Zinc with clear trivalent chromate
Valve Type	Non-spill	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Body Size	1/8 inch
Maximum Operating Pressure	6000 psi	Body Material	Steel
Minimum Operating Temperature	-40 °F	Hex Size	0.81 inch
Specifications Met	SAE J1502 / ISO 15171-1	Flow Rate	0.8 Gal/min
Application	Diagnostic
