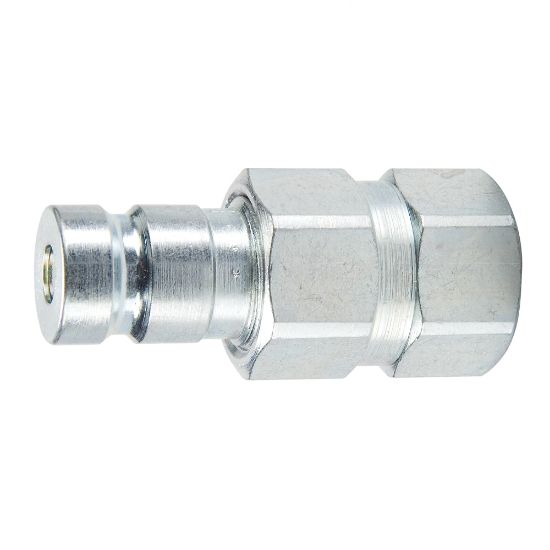

PD34BTX-6 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	1 Limited Stock

SKU PD34BTX-6

$37.73/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Tube Size (inch)	1/4	Connection Type	Triple-Lok
Connection Thread Size (inch)	na	Valve Type	Non-spill
Division	Quick Coupling Division	Flow Rate	0.8 Gal/min
Body Material	Steel	Maximum Operating Pressure	6000 psi
Plating Type	Zinc with clear trivalent chromate	Hex Size	na inch
Minimum Operating Temperature	-40 °F	Application	Diagnostic
Specifications Met	SAE J1502 / ISO 15171-1	Maximum Operating Temperature	250 °F
Body Size	1/8 inch	Seal Material	Nitrile
Product Type	Push to connect
