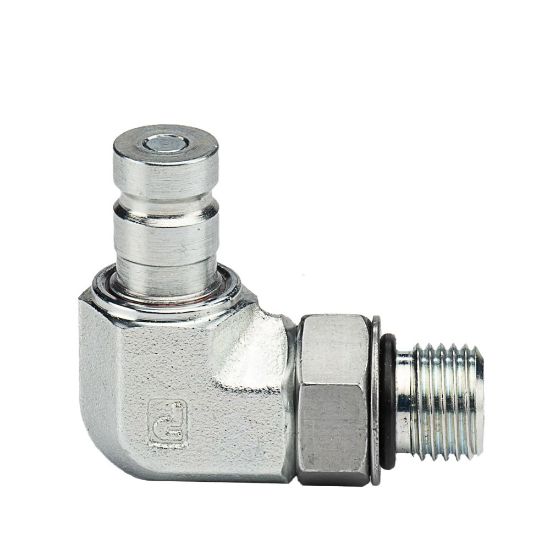

PD361-90 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU PD361-90

$38.29/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Male UNF
Coupling Half	Male Nipple	Tube Size (inch)	na
Connection Thread Size (inch)	9/16 - 18	Body Material	Steel
Valve Type	Non-spill	Application	Diagnostic
Flow Rate	0.8 Gal/min	Specifications Met	SAE J1502 / ISO 15171-1
Maximum Operating Pressure	6000 psi	Plating Type	Zinc with clear trivalent chromate
Minimum Operating Temperature	-40 °F	Hex Size	0.69 inch
Maximum Operating Temperature	250 °F	Seal Material	Nitrile
Body Size	1/8 inch	Division	Quick Coupling Division
Product Type	Push to connect
