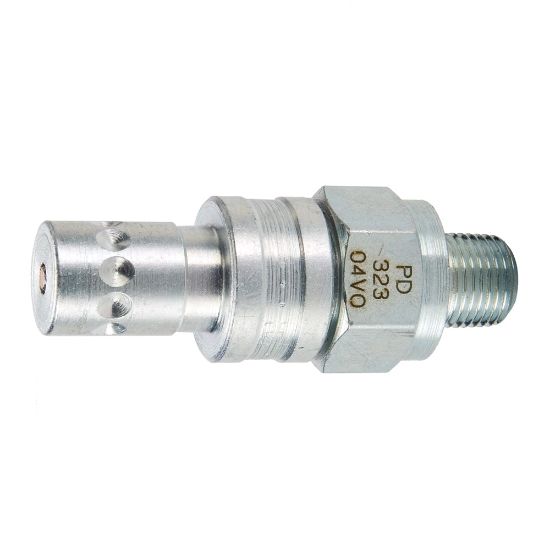

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PD361Y - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU PD361Y

$14.99/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Male UNF
Connection Thread Size (inch)	9/16 - 18	Tube Size (inch)	na
Coupling Half	Male Nipple	Body Material	Steel
Maximum Operating Pressure	6000 psi	Minimum Operating Temperature	-15 °F
Hex Size	0.69 inch	Flow Rate	0.8 Gal/min
Application	Diagnostics	Specifications Met	SAE J1502
Body Size	1/8 inch	Seal Material	Fluorocarbon
Product Type	Push to Connect	Plating Type	Zinc with Clear Trivalent Chromate
Maximum Operating Temperature	400 °F	Valve Type	Non-spill
Division	Quick Coupling Division
