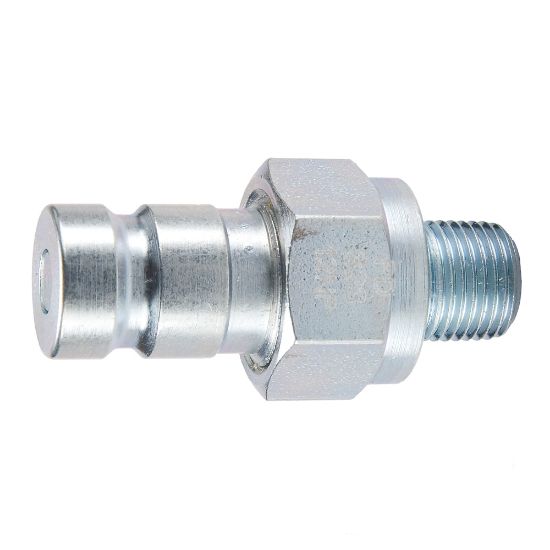

PD363-6 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU PD363-6

$27.55/each

Products specifications

Attribute name	Attribute value
UOM	EA	Tube Size (inch)	na
Connection Type	Male NPTF	Connection Thread Size (inch)	3/8 - 18
Coupling Half	Male Nipple	Specifications Met	SAE J1502
Application	Diagnostics	Flow Rate	0.8 Gal/min
Product Type	Push to Connect	Hex Size	0.81 inch
Plating Type	Zinc with Clear Trivalent Chromate	Minimum Operating Temperature	-40 °F
Division	Quick Coupling Division	Valve Type	Non-spill
Seal Material	Nitrile	Body Size	1/8 inch
Maximum Operating Temperature	250 °F	Maximum Operating Pressure	6000 psi
Body Material	Steel
