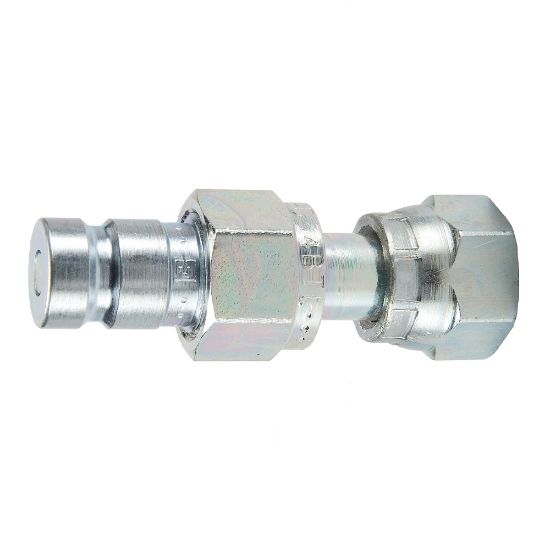

PD36BTL-6 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	13 in stock

SKU PD36BTL-6

$42.08/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Tube Size (inch)	3/8
Connection Type	Seal-Lok	Coupling Half	Male Nipple
Connection Thread Size (inch)	na	Hex Size	na inch
Minimum Operating Temperature	-40 °F	Flow Rate	0.8 Gal/min
Application	Diagnostic	Specifications Met	SAE J1502 / ISO 15171-1
Product Type	Push to connect	Plating Type	Zinc with clear trivalent chromate
Valve Type	Non-spill	Division	Quick Coupling Division
Body Size	1/8 inch	Maximum Operating Temperature	250 °F
Seal Material	Nitrile	Maximum Operating Pressure	6000 psi
Body Material	Steel
