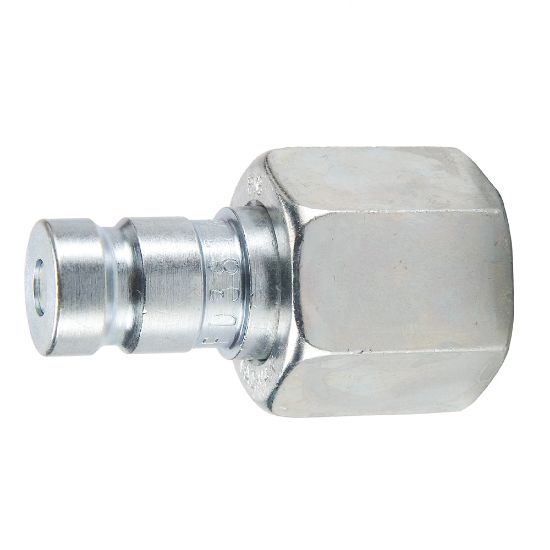

PD38BTX-6 - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	19 in stock

SKU PD38BTX-6

$37.78/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Triple-Lok
Connection Thread Size (inch)	na	Tube Size (inch)	1/2
Coupling Half	Male Nipple	Hex Size	n/a inch
Minimum Operating Temperature	-40 °F	Specifications Met	SAE J1502
Flow Rate	0.8 Gal/min	Application	Diagnostics
Seal Material	Nitrile	Body Size	1/8 inch
Plating Type	Zinc with Clear Trivalent Chromate	Product Type	Push to Connect
Division	Quick Coupling Division	Valve Type	Non-spill
Maximum Operating Temperature	250 °F	Maximum Operating Pressure	6000 psi
Body Material	Steel
