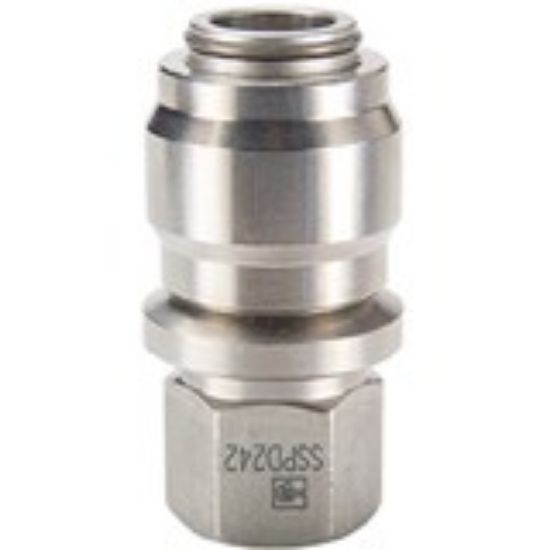

SSPD242Y - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU SSPD242Y

$509.05/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	1/4 - 18
Tube Size (inch)	na	Coupling Half	Female Coupler
Connection Type	Female NPTF	Seal Material	Fluorocarbon
Product Type	Push to connect	Plating Type	na
Minimum Operating Temperature	-15 °F	Hex Size	0.81 inch
Application	Diagnostic	Flow Rate	0.8 Gal/min
Specifications Met	SAE J1502 / ISO 15171-1	Maximum Operating Pressure	6000 psi
Body Material	Stainless steel	Maximum Operating Temperature	400 °F
Valve Type	Non-spill	Division	Quick Coupling Division
Body Size	1/8 inch

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
