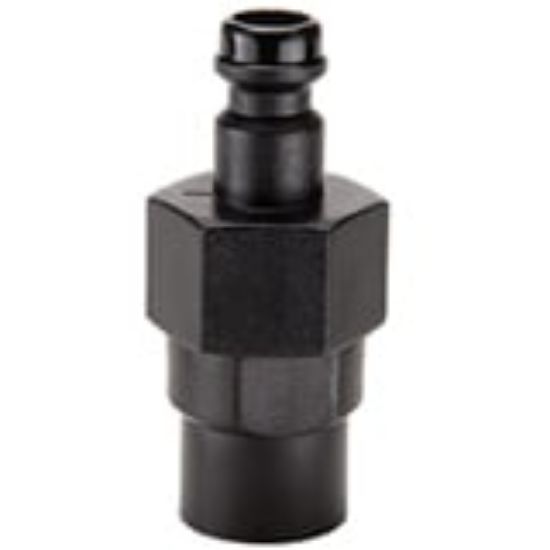

S2-ANV-04-FP - Thermoplastic, Low Pressure Quick Couplings - Spectrum Series

Note: This product is no longer available - please contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU S2-ANV-04-FP

$11.91/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	1.5
Connection Thread Size (inch)	1/4 - 18	Connection Type	Female NPT
Coupling Half	Male Nipple	Body Size (inch)	1/8
Connection Tube Inside Diameter	na	Hex Size	0.67 inch
Minimum Operating Temperature	0 °F	Application	Low pressure fluids and gases
Maximum Operating Pressure	145 psi	Spring Material	316 Stainless steel
Body Material	Acetal	Valve Type	Poppet
Division	Quick Coupling Division	Maximum Operating Temperature	180 °F
Seal Material	Nitrile	Product Type	Push-to-Connect
