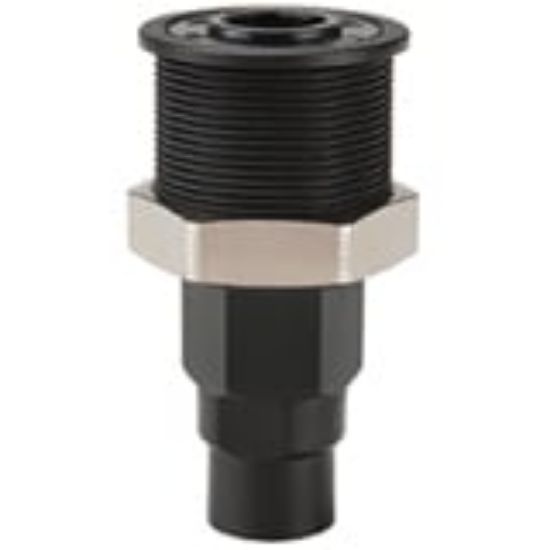

S2-APV-04-FP - Thermoplastic, Low Pressure Quick Couplings - Spectrum Series

Note: This product is no longer available - please contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU S2-APV-04-FP

$22.20/each

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Female Coupler
Connection Type	Female Panel Mount NPT	Body Size (inch)	1/8
Connection Tube Inside Diameter	na	Flow Rate	1.5
Connection Thread Size (inch)	1/4 - 18	Body Material	Acetal
Maximum Operating Pressure	145 psi	Spring Material	Stainless steel
Valve Type	Poppet	Division	Quick Coupling Division
Maximum Operating Temperature	180 °F	Seal Material	Nitrile
Product Type	Push-to-Connect	Hex Size	0.67 inch
Minimum Operating Temperature	0 °F	Application	Low pressure fluids and gases

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
