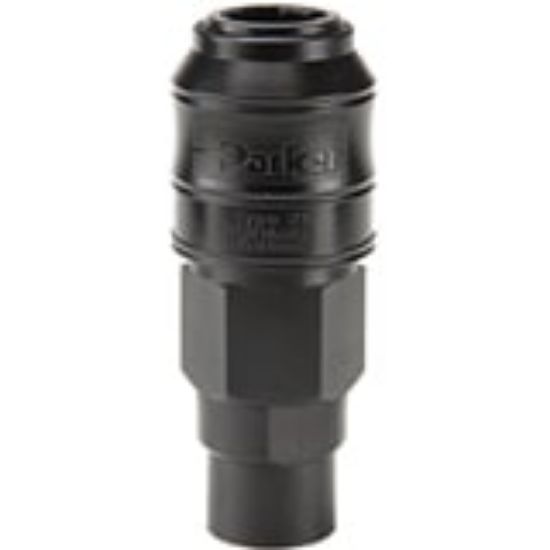

S6-ACV-06-FP - Thermoplastic, Low Pressure Quick Couplings - Spectrum Series

Note: This product is no longer available - please contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU S6-ACV-06-FP

$32.98/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Female NPT
Flow Rate	4.5	Coupling Half	Female Coupler
Connection Thread Size (inch)	3/8 - 18	Body Size (inch)	3/8
Connection Tube Inside Diameter	na	Spring Material	Stainless steel
Maximum Operating Pressure	145 psi	Body Material	Acetal
Valve Type	Poppet	Maximum Operating Temperature	180 °F
Division	Quick Coupling Division	Seal Material	Nitrile
Product Type	Push-to-Connect	Minimum Operating Temperature	0 °F
Hex Size	0.82 inch	Application	Low pressure fluids and gases
