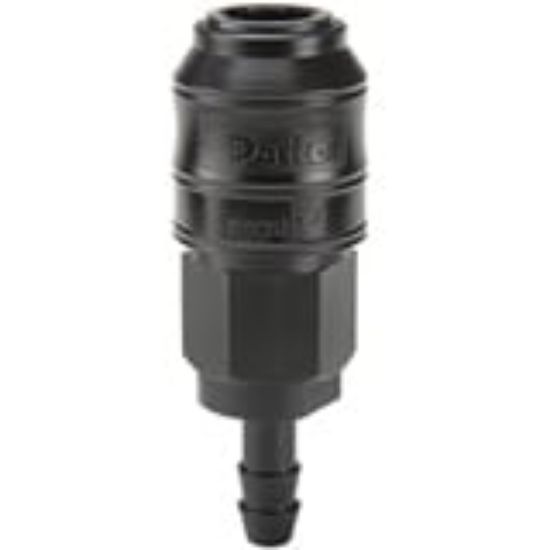

S6-ACV-06-HB - Thermoplastic, Low Pressure Quick Couplings - Spectrum Series

Note: This product is no longer available - please contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 98 days
Partner Available:	Backordered

SKU S6-ACV-06-HB

$32.36/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	na
Connection Type	Hose barb	Coupling Half	Female Coupler
Connection Tube Inside Diameter	3/8	Flow Rate	4.5
Body Size (inch)	3/8	Seal Material	Nitrile
Maximum Operating Temperature	180 °F	Product Type	Push-to-Connect
Hex Size	0.82 inch	Minimum Operating Temperature	0 °F
Application	Low pressure fluids and gases	Spring Material	Stainless steel
Maximum Operating Pressure	145 psi	Body Material	Acetal
Division	Quick Coupling Division	Valve Type	Poppet
