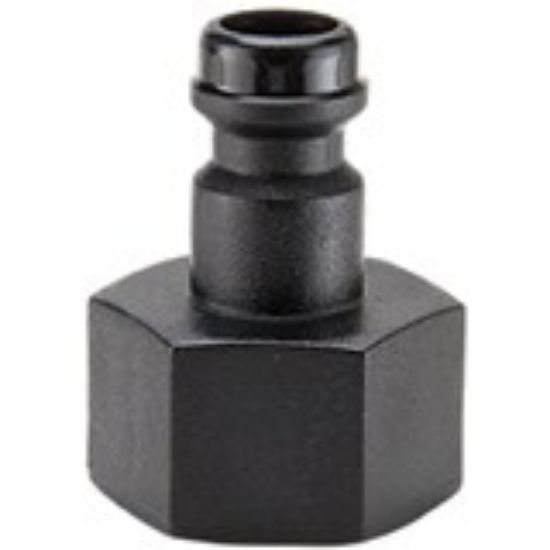

S6-ANS-06-FP - Thermoplastic, Low Pressure Quick Couplings - Spectrum Series

Note: This product is no longer available - please contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 159 days
Partner Available:	Backordered

SKU S6-ANS-06-FP

$7.50/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Female NPT
Flow Rate	4.5	Connection Thread Size (inch)	3/8 - 18
Body Size (inch)	3/8	Coupling Half	Male Nipple
Connection Tube Inside Diameter	na	Hex Size	0.83 inch
Minimum Operating Temperature	0 °F	Application	Low pressure fluids and gases
Spring Material	316 Stainless steel	Maximum Operating Pressure	145 psi
Body Material	Acetal	Division	Quick Coupling Division
Valve Type	Unvalved	Seal Material	Nitrile
Maximum Operating Temperature	180 °F	Product Type	Push-to-Connect

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
