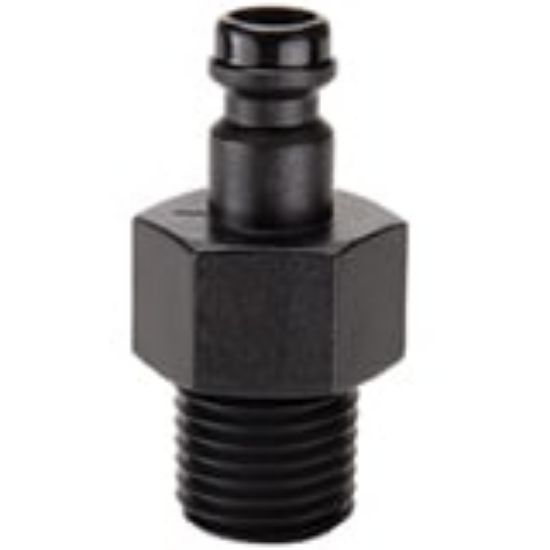

S6-ANS-06-MP - Thermoplastic, Low Pressure Quick Couplings - Spectrum Series

Note: This product is no longer available - please contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU S6-ANS-06-MP

$5.14/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Tube Inside Diameter	na
Flow Rate	4.5	Connection Thread Size (inch)	3/8 - 18
Coupling Half	Male Nipple	Connection Type	Male NPT
Body Size (inch)	3/8	Product Type	Push-to-Connect
Minimum Operating Temperature	0 °F	Hex Size	0.83 inch
Application	Low pressure fluids and gases	Maximum Operating Pressure	145 psi
Spring Material	316 Stainless steel	Body Material	Acetal
Division	Quick Coupling Division	Valve Type	Unvalved
Seal Material	Nitrile	Maximum Operating Temperature	180 °F

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
