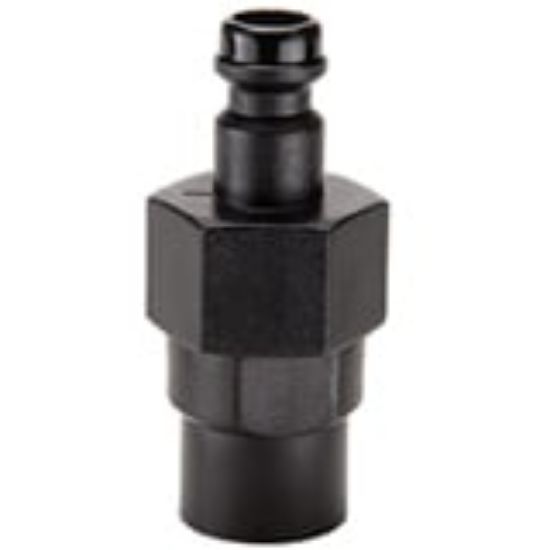

S6-ANV-06-FP - Thermoplastic, Low Pressure Quick Couplings - Spectrum Series

Note: This product is no longer available - please contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 98 days
Partner Available:	Backordered

SKU S6-ANV-06-FP

$24.02/each

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Body Size (inch)	3/8	Connection Tube Inside Diameter	na
Flow Rate	4.5	Connection Type	Female NPT
Connection Thread Size (inch)	3/8 - 18	Division	Quick Coupling Division
Valve Type	Poppet	Seal Material	Nitrile
Maximum Operating Temperature	180 °F	Product Type	Push-to-Connect
Minimum Operating Temperature	0 °F	Hex Size	0.83 inch
Application	Low pressure fluids and gases	Maximum Operating Pressure	145 psi
Body Material	Acetal	Spring Material	316 Stainless steel
