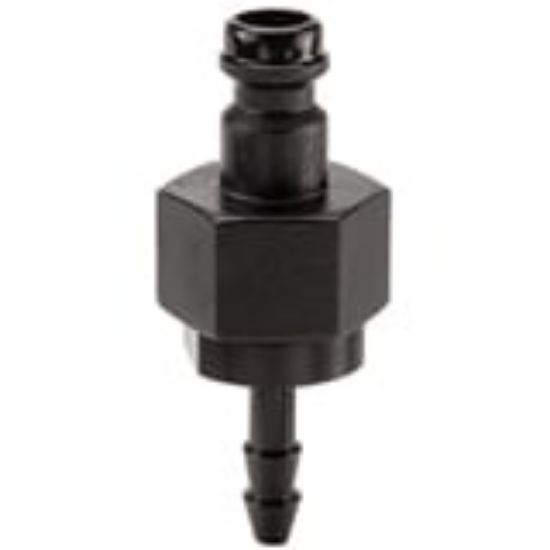

S6-ANV-06-HB - Thermoplastic, Low Pressure Quick Couplings - Spectrum Series

Note: This product is no longer available - please contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU S6-ANV-06-HB

$28.98/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Hose barb
Flow Rate	4.5	Connection Tube Inside Diameter	3/8
Coupling Half	Male Nipple	Body Size (inch)	3/8
Connection Thread Size (inch)	na	Product Type	Push-to-Connect
Hex Size	0.82 inch	Minimum Operating Temperature	0 °F
Application	Low pressure fluids and gases	Spring Material	316 Stainless steel
Maximum Operating Pressure	145 psi	Body Material	Acetal
Valve Type	Poppet	Maximum Operating Temperature	180 °F
Division	Quick Coupling Division	Seal Material	Nitrile
